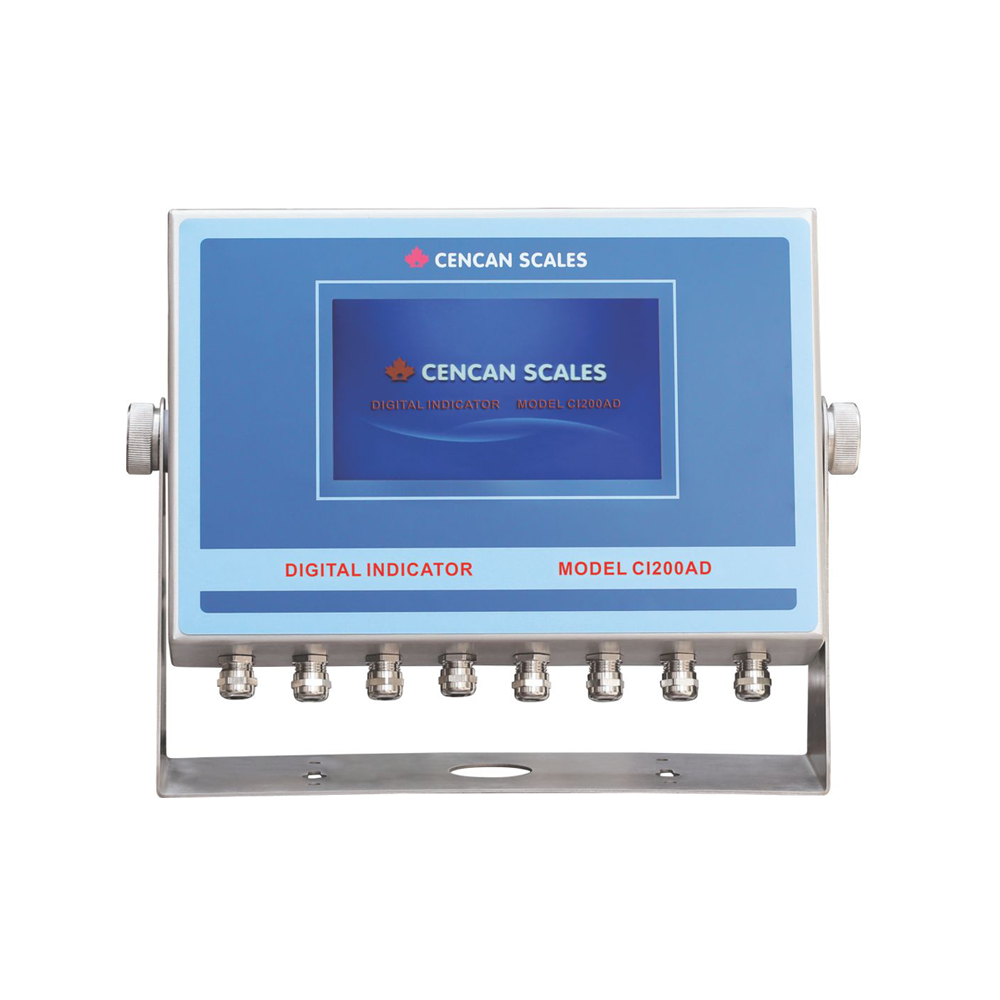

Digital Indicator CI200AD
DIGITAL INDICATORS
General Features
- Ease of use touch screen interface and graphic display
- Self diagnostics at startup minimizing possible risks
- Suitable for wide range of weighing scales
- Effective protection against RFI, EMI and ESD
- Power up to 16 digital load cells or 12 analog load cells
- Internal real-time clock for easy supervision
- Stainless steel enclosure with IP65 protection assure longer lifetime
- Versatile connectivity with RS232, RS485, Analog output, LAN, Ethernet
- Programmable tickets and various report types directly printed on serial printers
- Built-in memory store up to 3500 weighing records and transactions
Technical Specifications
| Display |
7inch TFT 800x400 pixels |
| Input Keys |
Resistive touch screen |
| Internal Resolution |
1,000,000 |
| Displayed Resolution | 100,000 |
| Excitation Voltage | 12VDC (Digital) / 5VDC (Analog) |
| Load Cell Interface |
RS485 |
| Decimal Points | Configurable |
| Warm-up Time | Self test complete |
| Communications | Serial output RS232/RS485, Analog output, LAN, Ethernet (optional) |
|
Power Input |
110 ÷ 220VAC ± 10% 50/60Hz ± 10% |
| Power Consumption | 15VA |
| Scale Types | Power up to 16 x digital load cell / 12 x 350-Ohm analog load cells |
| Calibration | Multi-point calibration |
| Update Rate | 10 per second |
| Environment Protection |
Stainless steel enclosure / IP65 |
| Weight Tickets | Programmable |
| Built-in Memory | 1000 pre-tare / 3500 latest weighing records |
| Protection | RFI / EMI / ESD |
| Operating Temperature | -10°C ÷ +40°C |
| Dimensions | 310(L) x 270(W) x 105(D) mm |
| Shipping Weight | 5 kgs |
