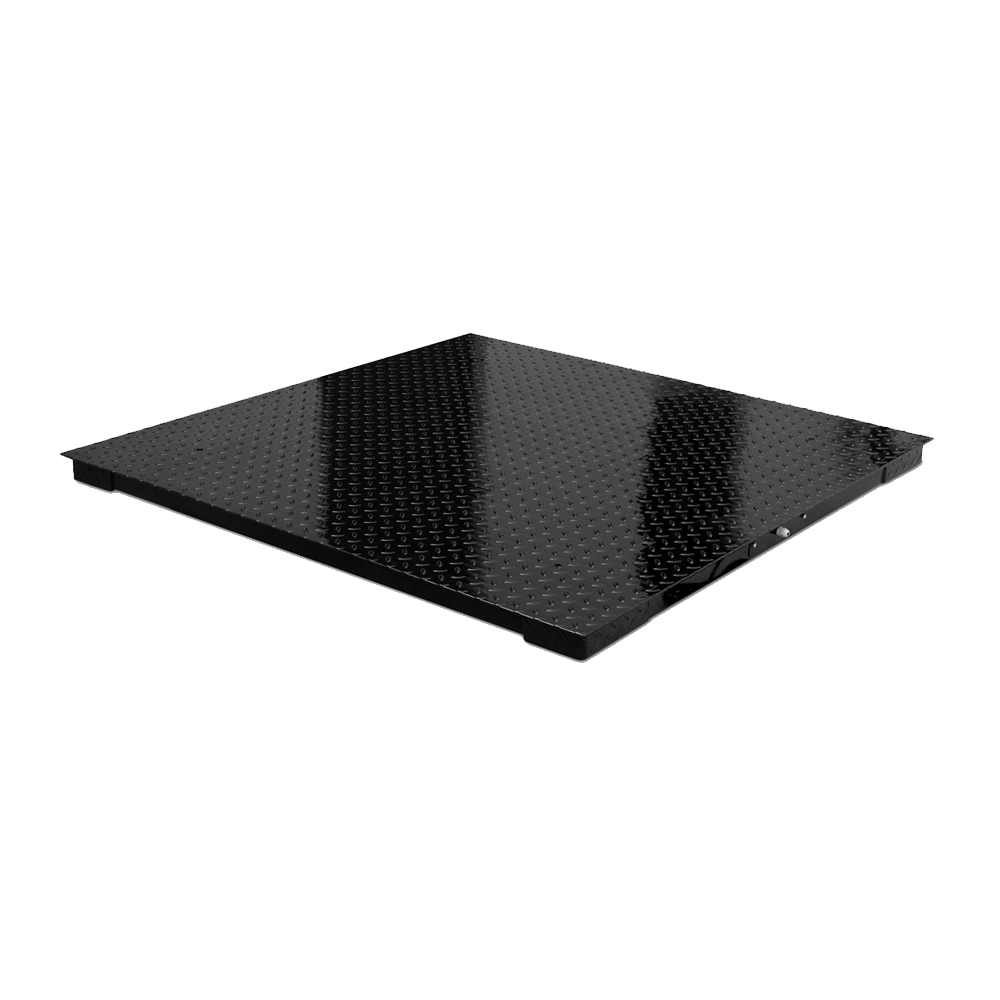

Floor Scale CF01
CF01 Heavy Duty Floor Platforms Series is designed & built to meet a wide range of heavy traffic industrial applications up to 5000kg.
It delivers reliable, accurate and smooth performance to meet weighing, batching and counting needs.
Quality, Structural Strength & Accuracy are Safeguarded & Guaranteed by:
- Material Grade
- Material Thickness
- Tooling & Method used to handle Material Cutting, Blending … etc.
- Smart & CNC Made Oversized Heavy Duty Load Cell Supporting & Mounting Blocks
- Strict Construction Accuracy Standards Applied
- Smart & High Quality Stainless Steel Junction Box used
- 40CrNiMoA Alloy Steel Load Cells
- High Density Channel Frame Allocation
- High Quality Epoxy Coating
Features
- Rigid Structural Steel Channel Frame Specifically Designed for Heavy Traffic
- Strong Channel Frame Provides Extra Protection by Enclosing the Load Cells, Cable and Junction Box Inside and away from Chemicals and Other Industrial Element
- Heavy-Duty Industrial design Threaded Eyebolt Holes for Easy Lifting
- Top-of-Floor or In-Floor Mounting
- Swivel Adjustable Feet Eliminate Weighing Errors due to Misalignment
- Construction Accuracy = Better than 0.25%
Specifications
|
Model No. |
Platform Size (mm) |
Load Cell |
|||||
|
HSB-0808 |
800 x 800 |
OIML / NTEP C3 approved Assignment: - · 4 x 500kg for Max = 0.5 ~ 1T · 4 x 1000kg for Max = 1.5 ~ 2T · 4 x 1500kg for Max = 3T · 4 x 2000kg for Max = 5T |
|||||
|
HSB-0810 |
800 x 1000 |
||||||
|
HSB-1010 |
1000 x 1000 |
||||||
|
HSB-1012 |
1000 x 1200 |
||||||
|
HSB-1212 |
1200 x 1200 |
||||||
|
HSB-1215 |
1200 x 1500 |
||||||
|
HSB-1515 |
1500 x 1500 |
||||||
|
HSB-1520 |
1500 x 2000 |
||||||
|
HSB-2020 |
2000 x 2000 |
||||||
|
Nominal Capacity (Max) |
0.5T |
1T |
1.5T |
2T |
3T |
5T |
|
|
Adjusted Eccentric Accuracy (kg) |
0.1 |
0.1 |
0.2 |
0.2 |
0.5 |
1.0 |
|
|
Structural Strength |
Maximum = 5T; Safe Overload = 6T |
||||||
|
Material & Structural Data |
All Material = Mild Steel Thickness: · Top Plate Thickness ≥ 4.6mm; Underneath Columns Thickness ≥ 2.6mm Width: · Width of Load Cell Mounting Columns = 120mm Overall Height: · 65mm (platform only) |
||||||
|
Construction Accuracy |
Better than 0.25% |
||||||
|
Load Cell & Output |
OIML / NTEP C3 Approved 40CrNiMoA Alloy Steel Load Cells, 3mV/V |
||||||
|
Junction Box |
JBA-46S Stainless Steel Junction Box Included |
||||||
|
Signal Cable |
5m 6-wire Shielded Cable Included |
||||||
