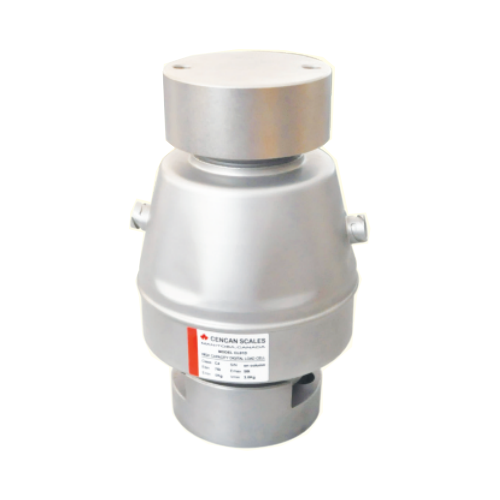

Compression Digital Load Cell CL02D
COMPRESSION
Description
CL02D is Cencan Scales' newly-developed canister high accuracy digital load cell, designed for heavy-duty truck scales, rail scales, tank and silo weighing applications. Made not only with industry highest standards but also with exceptional built-in surge arrestors and junction box – free cable, CL02D digital load cell in combination with CI100D digital indicator is the best choice for applications which require harsh-environment, heavy-duty and high-accuracy.
CL01D is known as one of the best digital load cells. CL02D is even better with two new main improvements:
- Military-grade double-shielded cable and aviation-grade waterproof connectors eliminates junction boxes.
- Outstanding lightning arrestor which can withstand surge of upto 80kA 8/20µs.
Applications
- Truck scales
- Rail scale
- Tank, hopper, silo weighing
Main specifications
| Load Cell Type | Column Compression, Digital Weight Processor |
| Capacity (ton) | 30, 40, 50, 60 |
| Accuracy | C4, OIML |
| Communication |
RS485 Encrypted |
| Communication Rate |
19200bps |
| Connection type |
Aviation-grade series connectors |
| Cable Length, Home Run |
≤ 200m |
| Warm-up Time from Cold Start |
10 minutes |
| Temperature - Operating |
-30°C ≈ +70°C |
| Temperature - Compensated |
-10°C ≈ +40°C |
| Temperature - Operating | -30°C ≈ +70°C |
| Temperature - Calibrated | -10°C ≈ +40°C |
| Working Angle | ±3° from vertical |
| Minimum Dead Load |
0 kg |
| Combined Error |
< 250ppm R.C. |
| Protection |
IP68 (3m - 7 days submersion), IP69K Externally Tested |
| Safe Load Limit |
200% |
| Ultimate Load Limit |
300% |
| Construction |
Stainless Steel |
| Lightning Protection |
80kA 8/20µs |
| Break down Voltage |
≥ 500 VAC |
| Insulation Resistance | ≥ 5000 MΩ @ 50VDC |
