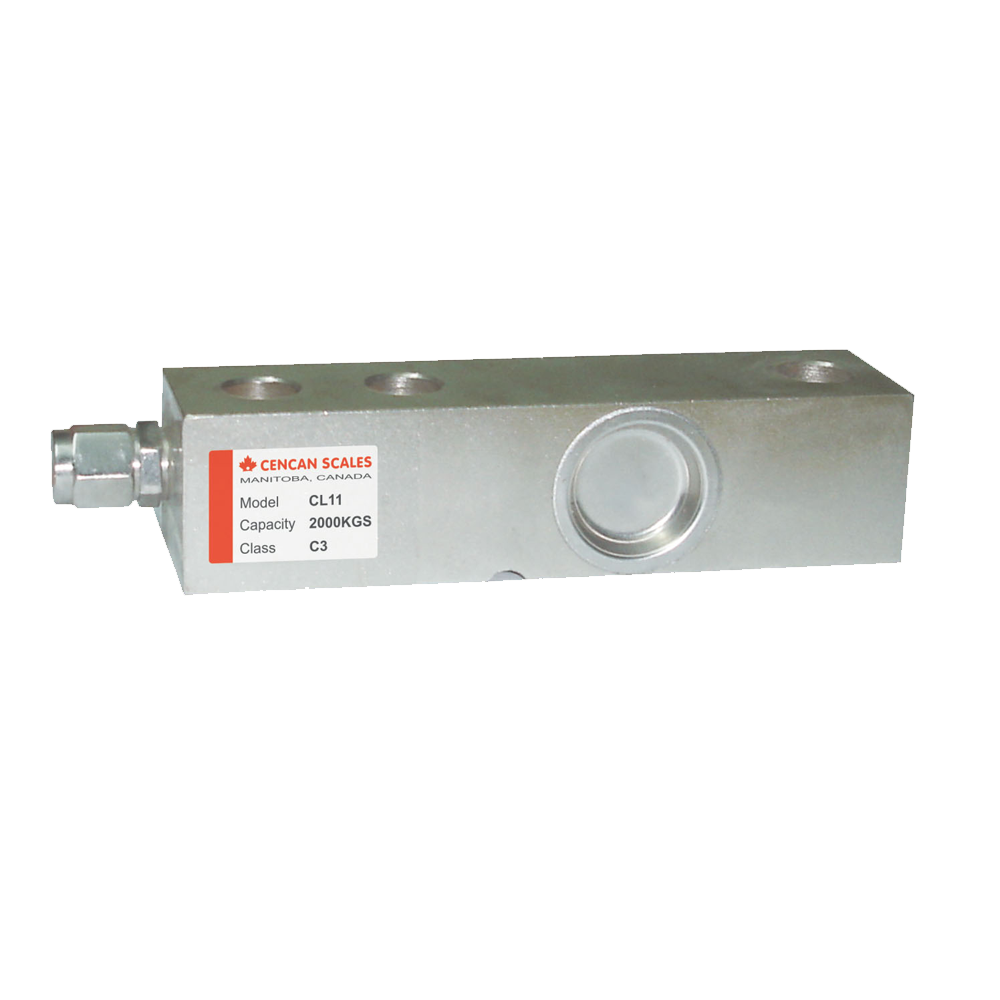

Shear Beam Load Cell CL11
SHEAR BEAM
Description
CL11 is low profile shear beam load cell, designed for floor scales, pallet scales, tank and hopper weighing applications. Made from high quality alloy steel (optional stainless steel) and with industry highest standards, CL11 is the good choice for harsh working environments.
Applications
- Floor scales
- Pallet scale
- Tank, hopper weighing
Main specifications
| Rated Load | 2,2.5,3.5,5t | Operating Temp Range | -30°C ≈ + 70°C |
| Sensitivity | 3.0±0.003mV | Safe load limit | 150%F.S |
| Total error | ±0.02%F.S; ±0.03%F.S | Over load limit | 200%F.S |
| Creep (30min) | ±0.02%F.S | Recommend excitation | 10 - 12V DC |
| Zero balance | ±1%F.S | Maximum excitation | 15V DC |
| TCO | ±0.02%F.S/10°C | Protection Class | IP68 (1-10T) |
| TC SPAN | ±0.02%F.S/10°C | Construction | Alloy Steel, Stainless Steel |
| Input resistance | 400 ± 2Ω | Cable | |
| Output resistance | 352 ± 2Ω | Length | 3m (2-2.5t); 4.2m (3-5t) |
| Insulation resistance | 5000MΩ | Diameter | Φ 6mm |
