Shear Beam Load Cell CL12
SHEAR BEAM
Description

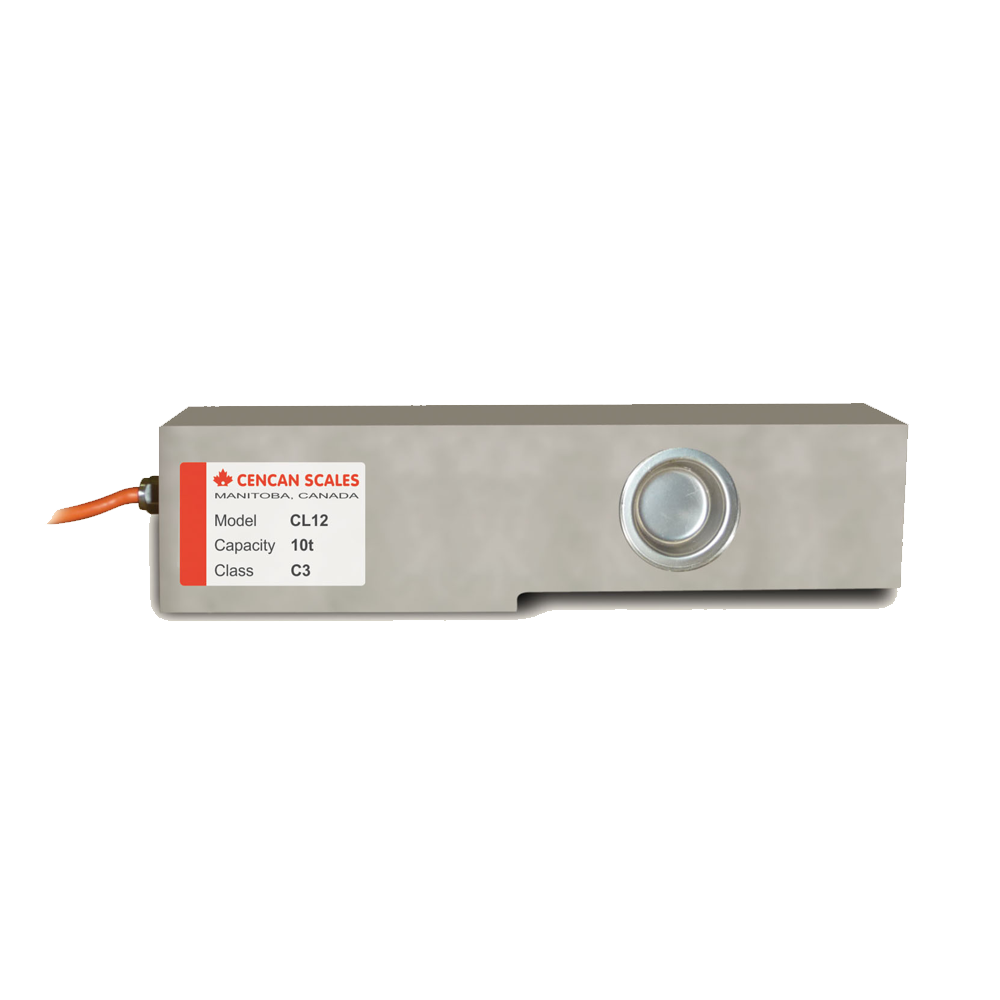

CL12 is low profile single-ended shear beam load cell, designed for floor scales, pallet scales, tank, hopper and silo weighing applications. Made from high quality alloy steel (optional stainless steel) and with industry highest standards, CL12 is the good choice for heavy-duty and harsh environments.
Applications
- Floor scales
- Pallet scale
- Tank, hopper weighing
Main specifications
| Rated Load | 0.3, 0.5, 1,2,3,5,7.5,10,15,20,25t | Operating Temp Range | -30°C ≈ +70°C |
| Sensitivity | 2.0±0.002mV/V | Safe load limit | 150%F.S; 120%F.S(20-25t) |
| Total error | C2 - C5: ±0.05%F.S | Over load limit | 300%F.S; 120%F.S(20-25t) |
| Creep (30min) | ±0.02%F.S | Recommend excitation | 10 ≈ 12V DC |
| Zero balance | ±1%F.S | Maximum excitation | 15V DC |
| TCO | ±0.02%F.S/10°C | Protection Class | IP67(0.5t), IP68(1-25T) |
| TC SPAN | ±0.02%F.S/10°C | Construction | Alloy Steel, Stainless Steel |
| Input resistance | 400±10Ω | Cable | |
| Output resistance | 352±3Ω | Length | 2.6m (0.3-20; 3.5m (3t); 5.2m(5-7.5t); 7m(10t); 12m(1 5-25t) |
| Insulation resistance | ≥ 5000MΩ | Diameter | Φ 5mm(0.3-7.5t); Φ 6mm(10-25t) |
