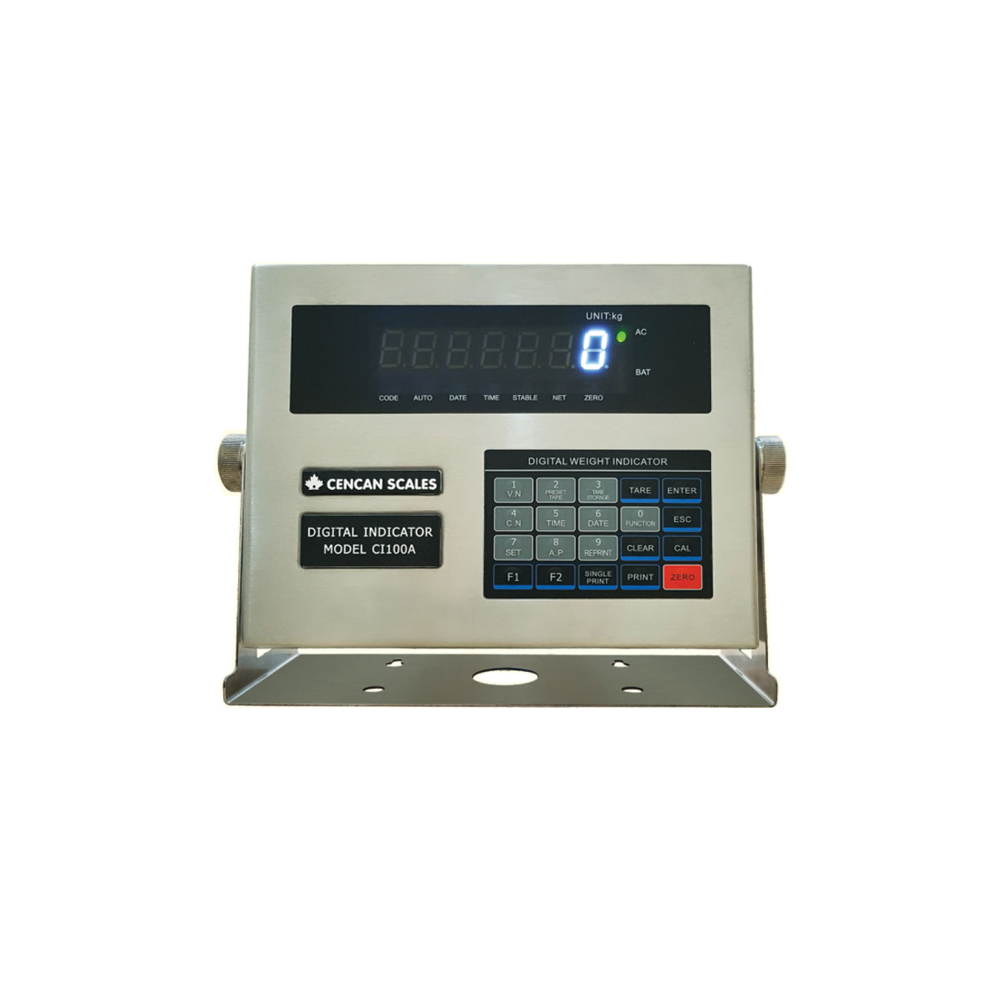

Digital Indicator CI100A
DIGITAL INDICATORS
General Features
- Advanced truck scale program with lots of new functions
- Bold LED display with interactive and friendly interface
- Stainless steel enclosure and membrane keys provide longer lifetime
- Complete connectivity with up to 12 x 350Ω load cells
- Real-time clock with date and time, power off protection
- Internal memory can save up to 800 truck ID and 500 transactions
- Flexible communications with serial, standard parallel, RS232 ...
- Dual power supply with AC and built-in rechargeable battery
Technical Specifications
| Keypad | 20 flat membrane keys with numeric keys, function keys, application keys |
| Display | 7 digits, 20mm high LED |
| System Linearity | 0.01% full scale |
| Sensitivity | 0.4µV/graduation |
| Internal Resolution | 1/2000000 |
| Displayed Resolution | 1/50000 |
| Scale Types | Power up to 12 x 350Ω load cell |
| Excitation Voltage | 5 VDC |
| Calibration | multi-point calibration |
| Update Rates | max 50 per second (selectable) |
| Circuit Protection | RFI, EMI |
| Serial Communication | 2 x RS-232 |
| Operating Temperature | -10°C ≈ +40°C |
| Power | 100-240 VAC, 50-60Hz |
| Power Consumption | 1.6A at 115VAC, 0.8A at 230VAC |
| Dimension | 316(L) x 130(W) x 230(D) mm, S/S enclosure |
| Shipping Weight | 4.1 kg |
