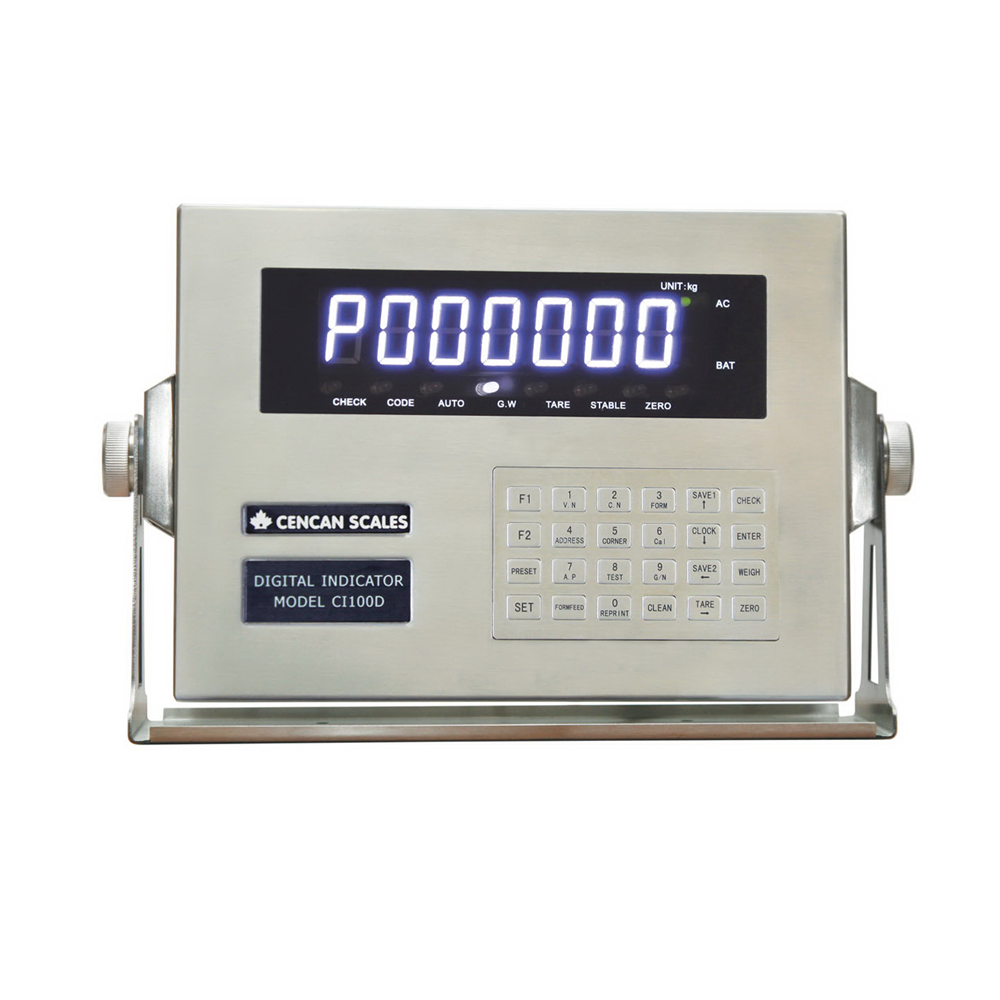

Digital Indicator CI100D
DIGITAL INDICATORS
General Features
- Advanced digital truck scale program with lots of new functions
- Stainless steel enclosure and keys assure longer keypad lifetime
- Complete connectivity with up to 16 digital load cells
- Self diagnostics minimizing possible risks from load cell or communication errors
- Flexible communications with serial, RS232, RS485, Analog Out, Modbus - RTU...
- Dual power supply with AC and 12V external rechargeable battery
Technical Specifications
| Dimension | 339(L)x 110(W) x 230(D) mm (13.3 x 4.3 x 9.0 in.), S/S enclosure |
| Keypad | 30 S/S tactile keys with numeric keys, function keys, application keys |
| Display | 7 digits super-bright LED, 7 status indicator |
| Internal Resolution | 1,000,000 |
| Displayed Resolution | 100,000 |
| Repeatability | ±0.01% F.S. |
| Excitation Voltage | 15VDC |
| Decimal Points | Configurable |
| Warm-up Time | Self test complete |
| Communications | Two serial ports (RS232/RS485 - RS232/20mA) Analog Output Modbus RTU |
| Power Input | 110-230VAC ± 10% /12VDC |
| Voltage Frequency | 50/60Hz ± 10% |
| Power Consumption | 45VA max |
| Scale Types | Power up to 16 x digital load cells |
| Calibration | Multi-point calibration |
| Update Rate | 50 per second |
| Operafing Temperature | -10°C ≈ +40°C |
| Shipping Weight | 4.5 kg (10 lbs) |
