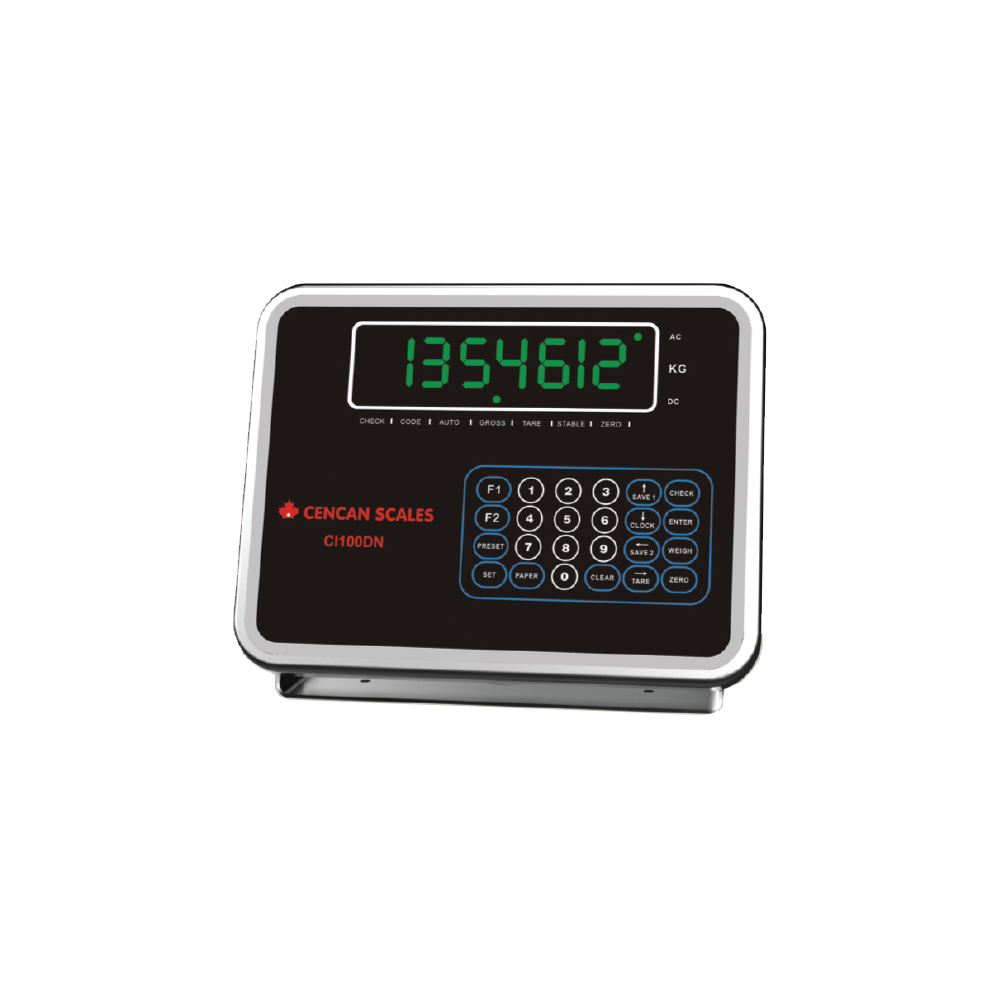

Digital Indicator CI100DN
DIGITAL INDICATORS
General Features
- Advanced digital truck scale program with tons of new functions
- Improved built-in surge protection assures longer lifetime
- Complete connectivity with up to 16 digital load cells
- Self diagnostics minimizing possible risks from load cell or communication errors
- Flexible communications with RS232, RS485, Analog Out, Modbus - RTU
- Dual power supply with AC and 12V external rechargeable battery
Technical Specifications
| Dimension | 300(L) x 140(W) x 242(D) mm (11.8 x 5.5 x 9.5 in.), S/S enclosure |
| Keypad | 24 tactile keys with numeric keys, function keys, application keys |
| Display |
7 digits super-bright LED, 7 status indicator |
| Internal Resolution |
1,000,000 |
| Displayed Resolution | 100,000 |
| Repeatability | ±0.01% F.S. |
| Excitation Voltage | 15VDC |
| Decimal Points | Configurable |
| Warm-up Time | Self test complete |
| Communications | Two serial ports (RS232/RS485 - RS232/20mA) Analog Output Modbus RTU |
|
Power Input |
110-230VAC ±10% / 12VDC 50/60Hz ±10% |
| Power Consumption | 45VA max |
| Scale Types | Power up to 16 x digital load cells |
| Calibration | Multi-point calibration |
| Update Rate | 50 per second |
| Operating Temperature | -10°C to +40°C |
| Shipping Weight | 4.5 kg (10 lbs) |
Specifications subject to change without notice.
