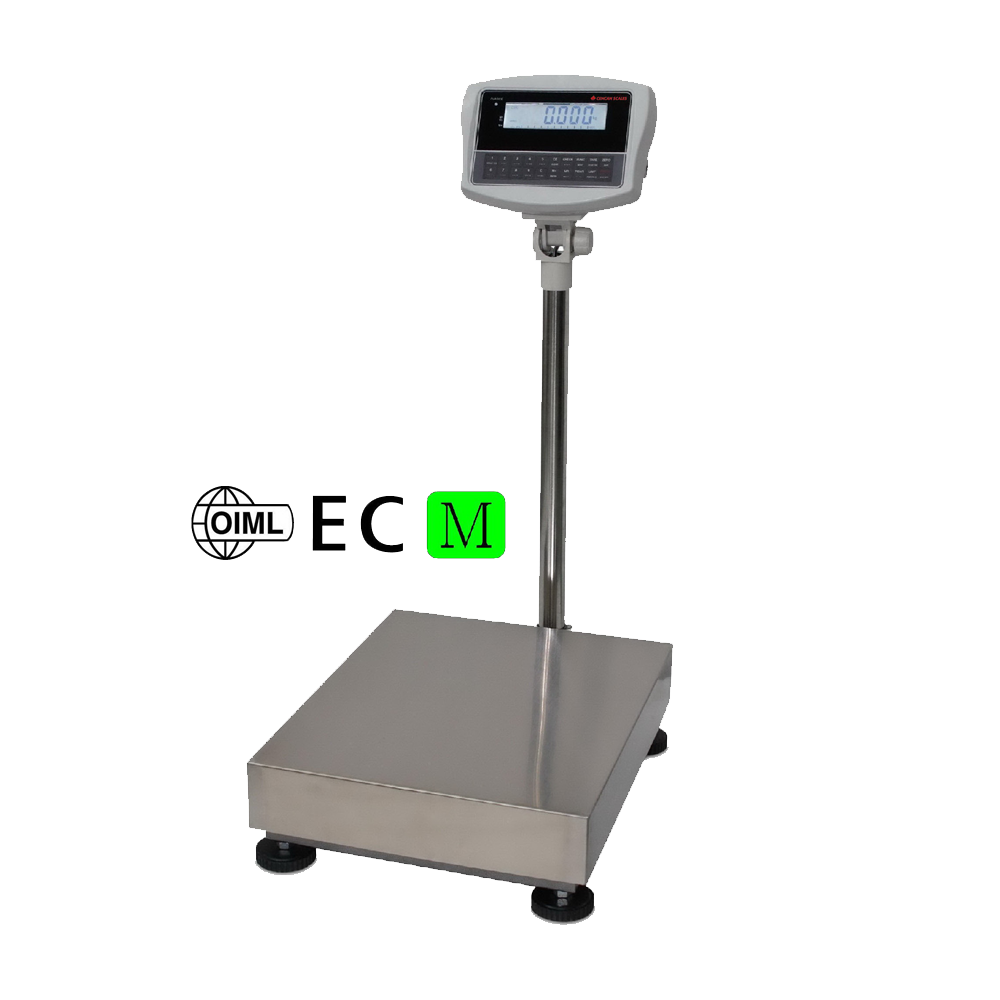

Platform Scale CP01
Features
- OIML / EC Type Approved Heavy Duty Bench Scales
- Rugged Mild Steel Tube Construction for Harsh and Rugged Environment
- Overload Protection Withstands Shock and Overloads
- 304 Stainless Steel Platform Cover
- Enhanced Dual Weighing Range Mode
- Real Time Clock
- Linearity Compensation
- Independent Zero Calibration
- Auto or User Programmable Odd Weight Calibration
- Gravity Compensation via Keyboard
- 6 x 1-inch Wide Angle LCD Numeric Digits
- Capacity Tracking Bar to Show Applied & Remaining Capacity
- Battery Protection Circuits
- Remaining Battery Indication
- Equipped with RS232 and Backlight
- Ticket and Label Printing
- Direct Control through and Q&A with other Peripherals
Approved Function
- Weighing
- Checkweighing Function
- Piece Count Function with Check Mode
- Percentage Function with Check Mode
- Animal Weighing Function with Check Mode
- User Programmable Check Functions Buzzer Output
- Memory Accumulation
- Pre-set Tare
- Independent and User Programmable Print Format for Weighing, Piece Count, Percentage Function
- Independent and User Programmable Print Format for Checkweighing, Piece Checking and Percentage Function
User Selectable Parameters
- 5 x Auto Power Off Time
- 4 x Filter Intensity Mode
- 3 x Backlight Mode
- 2 x Selectable Auto Tare Function
- 4 x RS232 Data Output Baud Rate
- 3 x Output Mode
- 4 x Data Format
- 3 x M+ Mode
- 3 x Data Output Mode
- 4 x Data Transmission Time Interval
- 8 x Number of Print Copy
- 6 x Output Band Rate
- 7 x Initial Zero Range
- 7 x Manual Zero Range
- 6 x Auto Zero Tracking Range
Specifications
|
Model No. |
Capacity & Division (kg) |
Platform Dimension |
|||
|
Approved Dual |
Non-Approved |
||||
|
W1/W2 |
e1/e2 |
Max |
d |
||
|
AFM18+FM-B30 |
15/30 |
0.005/0.01 |
30 |
0.001 |
300 x 400 |
|
AFM18+FM-B60 |
30/60 |
0.01/0.02 |
60 |
0.002 |
|
|
AFM18+FM-B150 |
60/150 |
0.02/0.05 |
150 |
0.005 |
|
|
AFM18+FM-F30 |
15/30 |
0.005/0.01 |
30 |
0.001 |
400 x 500 |
|
AFM18+FM-F60 |
30/60 |
0.01/0.02 |
60 |
0.002 |
|
|
AFM18+FM-F150 |
60/150 |
0.02/0.05 |
150 |
0.005 |
|
|
AFM18+FM-F300 |
150/300 |
0.05/0.1 |
300 |
0.01 |
|
|
AFM18+FM-F600 |
300/600 |
0.1/0.2 |
600 |
0.02 |
|
|
AFM18+FM-L60 |
30/60 |
0.01/0.02 |
60 |
0.002 |
500 x 650 |
|
AFM18+FM-L150 |
60/150 |
0.02/0.05 |
150 |
0.005 |
|
|
AFM18+FM-L300 |
150/300 |
0.05/0.1 |
300 |
0.01 |
|
|
AFM18+FM-L600 |
300/600 |
0.1/0.2 |
600 |
0.02 |
|
|
Tare Range |
l Approved Application = - W1 (Subtractive Tare) l Non-Approved Application = - Max (Subtractive Tare) |
||||
|
Power Voltage Requirements |
l Built-in Rechargeable Battery = 6V DC, or l External Power Adaptor = 9 ~ 12V DC, 500mA+ |
||||
|
Operating Environment |
-10~40°C (14~104°F) Non Condensing R.H. ≤85% |
||||
|
Specifications subject to change prior to notice |
|||||
