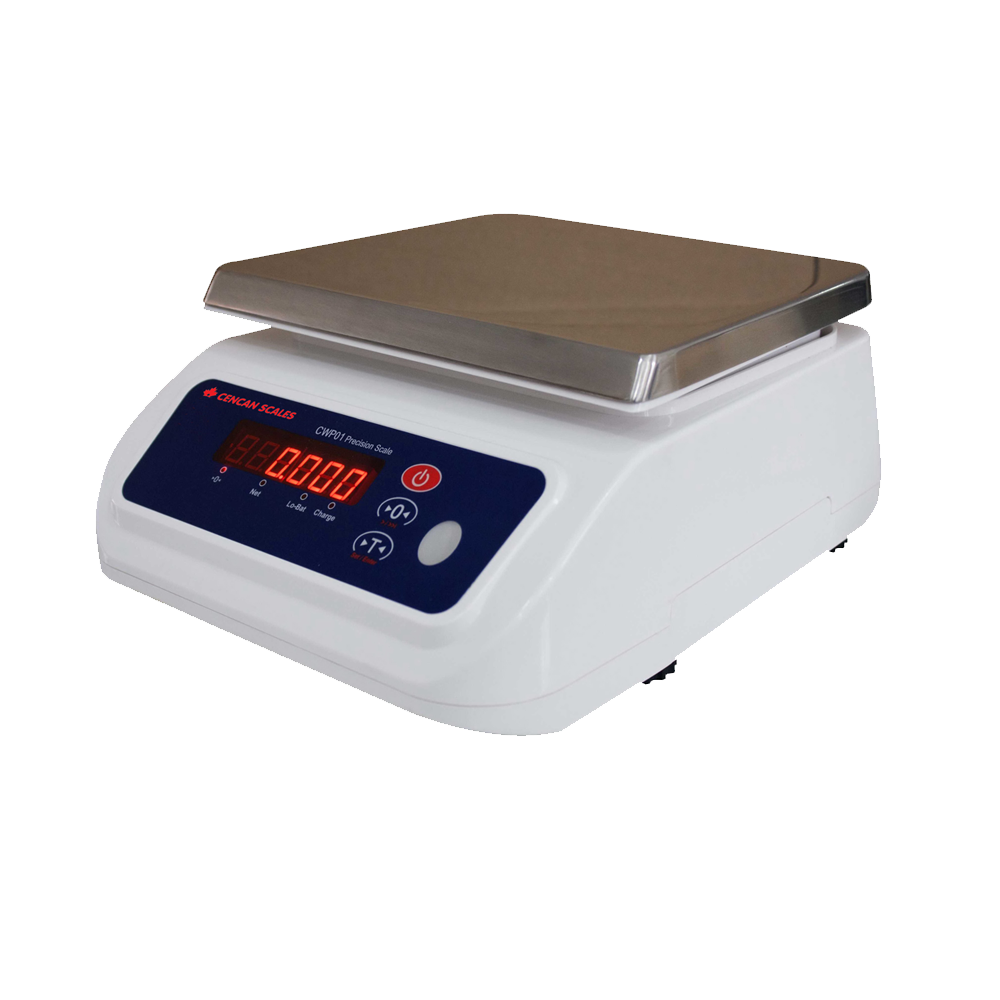

CWP01
CWP01 is a compact size, easy to operation wash down portion scale with all electronics and boards completely isolated from air by means of a thick layer of crystal-clear gel.
It is designed according to IP67 and maintenance free to deliver continuous, high efficiency and reliable service in wet and humid environment where condensation may exist.
Easy & no tool required removable platter and platter cover allows fast assembling after cleaning.
User Selectable Parameters
- 6 x Auto Power Off Time from disable to 20 minute
- 4 x Display Brightness Level
- 3 x Filter Strength Level
- 3 x Repetitive Tare Working Mode: - Off, Normal and Positive + Negative
Dealer Accessible Parameters
- 8 x Initial Zero Range from 0 to 20%
- 10 x Auto Zero Tracking Zero from 0.25 ~ 10d
- Standard and High Display Resolution
- 2 x Calibration Modes
Features & Functions
- Designed accordingly to IP67
- All Electronics are Isolated from Air by a Thick Layer of Crystal-Clear Gel
- Suitable for Environment / Applications where Condensation may exist
- User Friendly 3 Key Operation
- Powerful & High Speed MCU to deliver Ultra-Fast Results and weight Update
- Standard & High Display Resolution for Various Application
- High Capacity Rechargeable Battery to provide 100 Hours plus Non Stop Operating Time
- Standby Indication
- 6 x 15mm Numeric Digits
- Equipped with Zero, Net, Lo- Bat and Charge Indicators
- Smart Charging Circuits for Battery Protection
- Stable time ≦ 0.5sec at 7500d; ≦0.75 second at 15000d
- Full Segment Check
- Positive & Negative Repetitive Tae
- Auto Power Saving & Indication
- Overload Protection Devices
- Remaining Battery Operating Time at Start Up
Specifications
|
Model |
Capacity |
Standard Division |
High Division |
|
D2-1500 |
1500g |
0.2g |
0.1g |
|
D2-3000 |
3000g |
0.5g |
0.2g |
|
D2-6000 |
6000g |
1g |
0.5g |
|
D2-15K |
15kg |
0.002kg |
0.001kg |
|
Max. Tare Range |
- Max (Subtractive Tare) |
||
|
Power Source |
Built-in Rechargeable Battery = 6V, 5AH Built-in Battery Charger |
||
|
Platter |
185 x 240mm, ABS |
||
|
Battery Recharging |
Intelligent Digital Controlled Progressive Charging System |
||
|
Operation Environment |
0 ~ 40oC (32 ~ 104oF) |
||
|
In the interest of improvement, specifications may change prior to notice |
|||
Options
- SUS304 Stainless Steel Platter Cover
- Rear Display (Pre-installation required)
