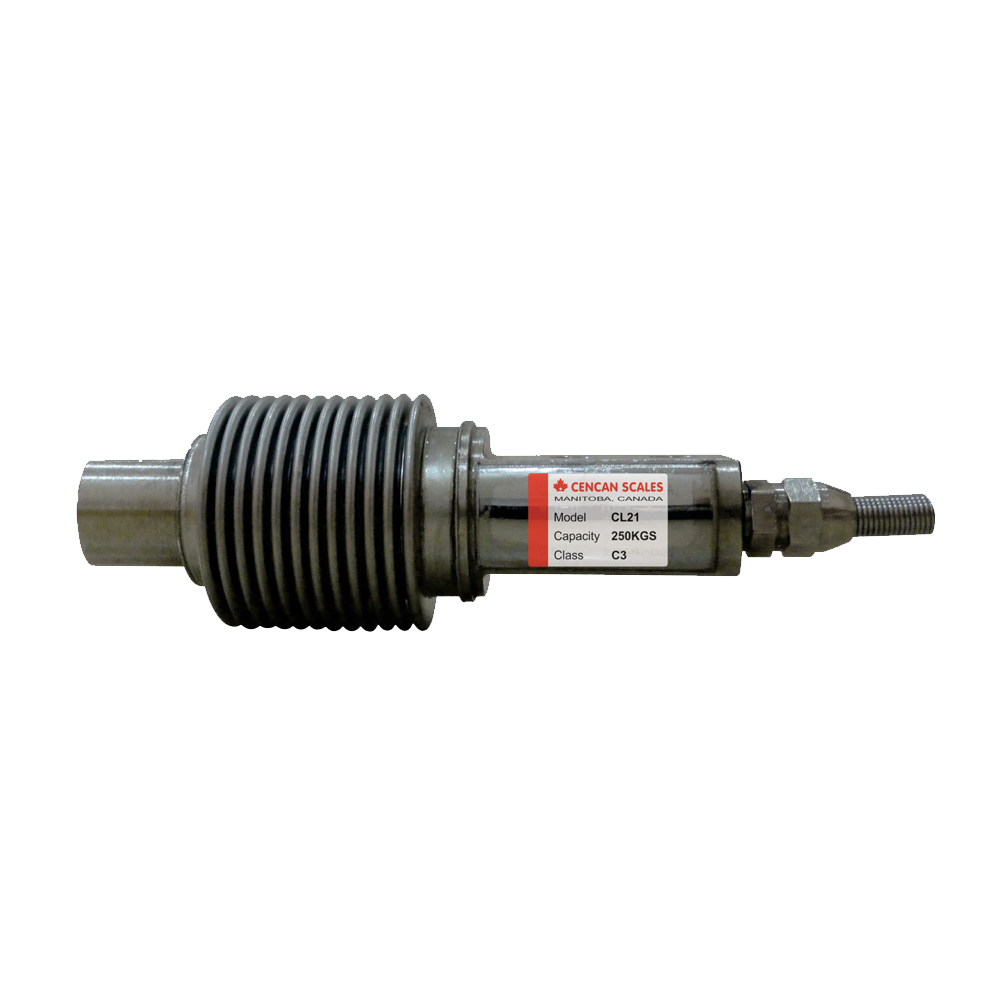

Bending Beam Load Cell CL21
BENDING BEAM
Description
CL21 is stainless steel bending beam load cell, designed for packing scales, low profile floor scales, belt scales, hopper and process weighing applications. Made from high quality stainless steel and with industry highest standards, CL21 is the good choice for food, chemical and allied industries.
Applications
- Packing scales
- Low profile floor scales
- Belt scales
- Tank, hopper weighing
Main specifications
| Rated capacities (Emax) | 5, 10, 20, 30, 50, 75, 100, 150, 200, 250, 300, 500kg | Temperature range, compensated | -10°C ≈ +40°C |
| Sensitivity | 2.0±0.002mV/V | Temperature range, operating | -30°C ≈ +70°C |
| Accuracy class | C2 - C5 | Maximum safe overload | 120% F.S. |
| Zero balance | ± 1%Emax | Ultimate overload | 150% F.S. |
| TCO | ± 0.02%F.S/10°C | Excitation, recommended | 10-12V DC |
| TC SPAN | ± 0.02%F.S/10°C | Excitation, maximum | 15V DC |
| Input resistance | 400 ± 20Ω | Protection class | IP68 |
| Output resistance | 352 ± 3Ω | Construction | Alloy Steel, Stainless Steel |
| Insulation resistance | ≥ 5000MΩ | Cable | Length: 3m,5m (HSX-A20kg) |
| Diameter: Φ 5mm |
