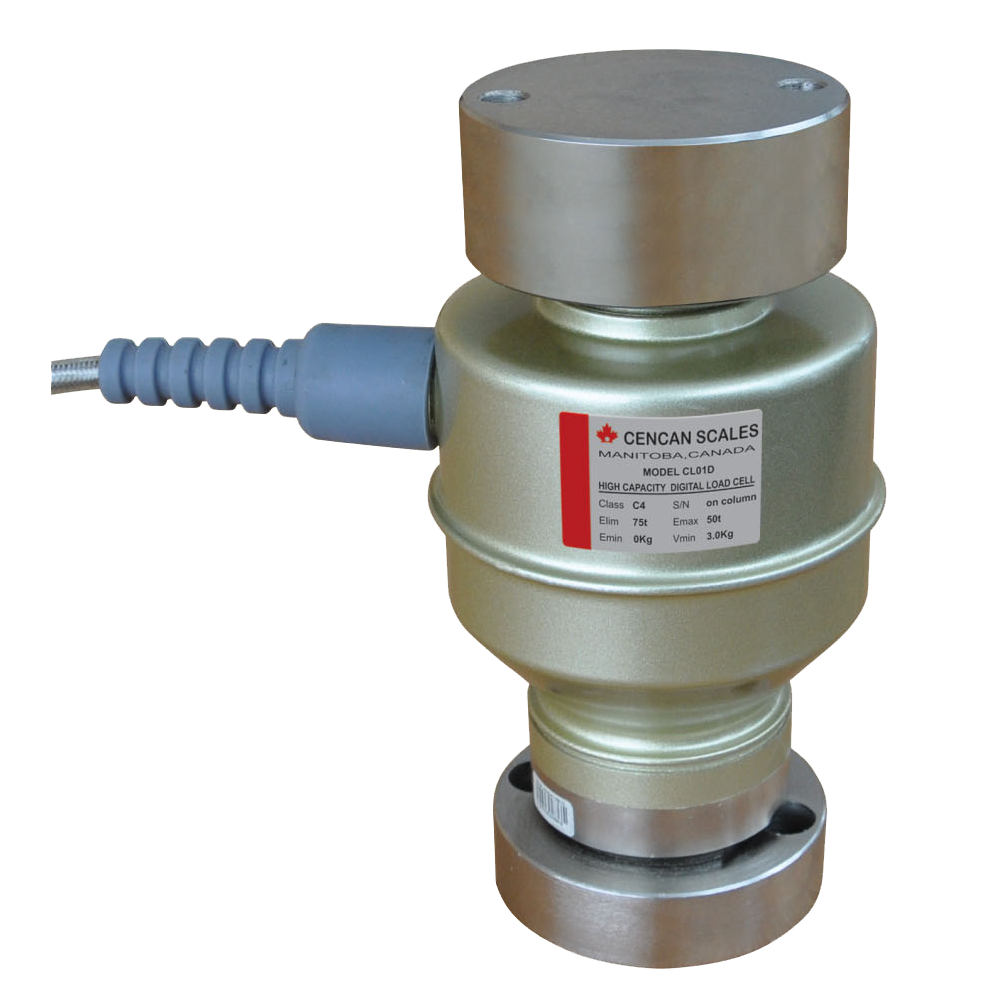

Compression Digital Load Cell CL01D
COMPRESSION
Description
CL01D is canister high accuracy digital load cell, designed for heavy-duty truck scales, rail scales, tank and silo weighing applications. Made with industry highest standards and with exceptional built-in surge arrestors, CL01D in combination with CI100D digital indicator is the ideal choice for applications which require harsh-environment, heavy-duty and high-accuracy.
Applications
- Truck scales
- Rail scale
- Tank, hopper, silo weighing
Main specifications
| Load Cell Type | Column Compression, Digital Weight Processor |
| Capacity (ton) | 30, 40, 50, 60 |
| Accuracy | C4, OIML |
| Communication | RS485 Encrypted |
| Communication Rate | 19200bps |
| Cable Length | 16m |
| Cable Length, Home Run | 200m |
| Warm-up Time from Cold Start | 10 minutes |
| Temperature - Operating | -30°C ≈ +70°C |
| Temperature - Compensated | -10°C ≈ +40°C |
| Working Angle | Max ±3° from vertical |
| Minimum Dead Load | 0 kg |
| Combined Error | < 250ppm R.C. |
| Protection | IP68 (1m - 7 days submersion), IP69K Externally Tested |
| Safe Load Limit | 150% |
| Ultimate Load Limit | 300% |
| Construction | Stainless Steel |
| Lightning Protection | Integral TVSS All Lines |
| Break down Voltage | ≥ 500 VAC |
| Insulation Resistance | ≥ 5000 MO @ 50VDC |
