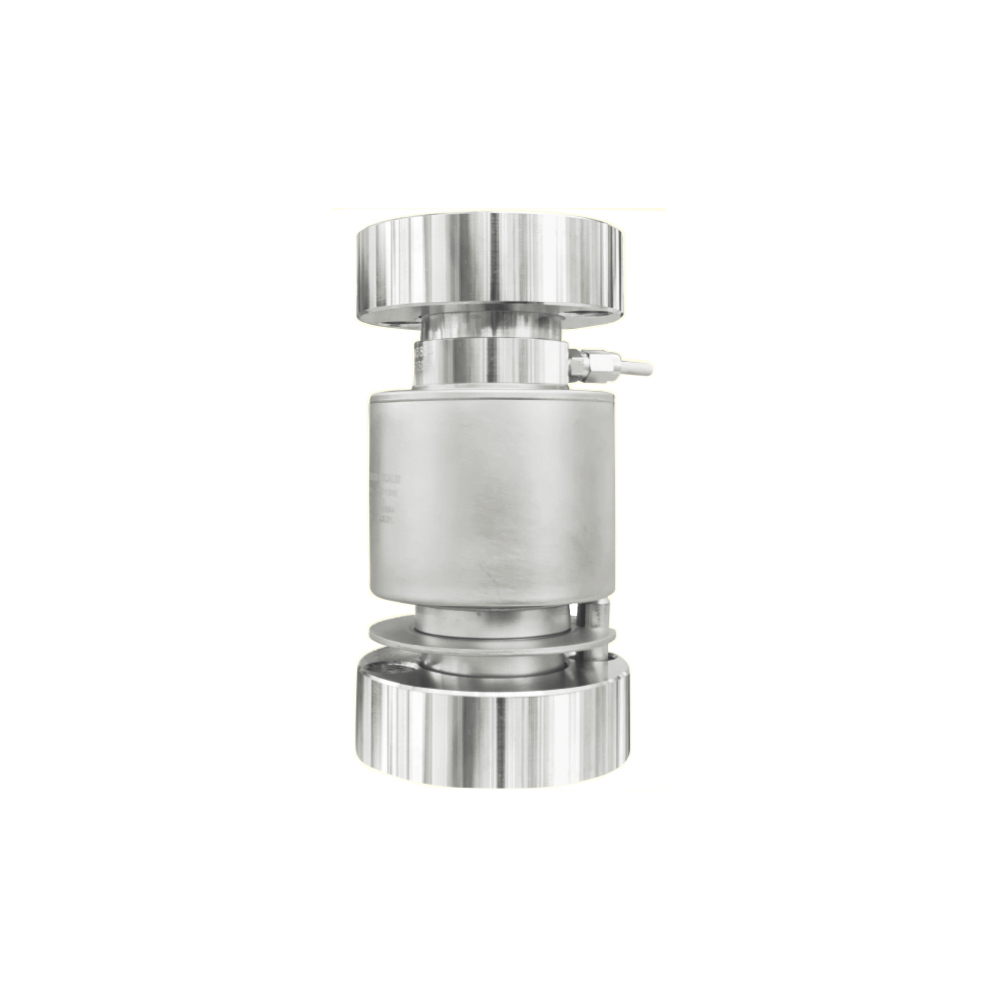

Compression Load Cell CL01DN
COMPRESSION
Description
CL01DN is canister high accuracy digital load cell, designed for truck scales, rail scales, tank and silo weighing applications. Made with industry standards and with built-in surge arrestors, CL01DN in combination with CI100DN digital indicator is suitable for various weighing applications.
Applications
- Truck scales
- Rail scale
- Tank, hopper, silo weighing
Technical Specifications
| Load Cell Type | Column Compression, Digital Weight Processor |
| Capacity (ton) | 20, 30, 50 |
| Accuracy | C3 OIML (Equivalent) |
| Communication |
RS485 Encrypted |
| Communication Rate |
9600 / 19200 bps |
| Cable Length |
14m |
| Cable Length, Home Run | ≤ 200m |
| Warm-up Time from Cold Start |
10 minutes |
| Temperature - Operating |
-30°C to +70°C |
| Temperature - Compensated |
-10°C to +40°C |
| Working Angle | Max 3° from vertical |
| Minimum Dead Load |
0 kg |
| Combined Error |
± 0.03% F.S. |
| Protection |
IP68 (1m - 7 days submersion) |
| Safe Load Limit |
150% |
| Ultimate Load Limit |
250% |
| Construction |
Alloy steel / Stainless steel |
| Lightning Protection |
Built-in as standard |
| Break down Voltage |
≥ 500 VAC |
| Insulation Resistance | ≥ 5000 MΩ @ 50VDC |
