S-stype Load Cell CL51
TENSION S-TYPE
Description

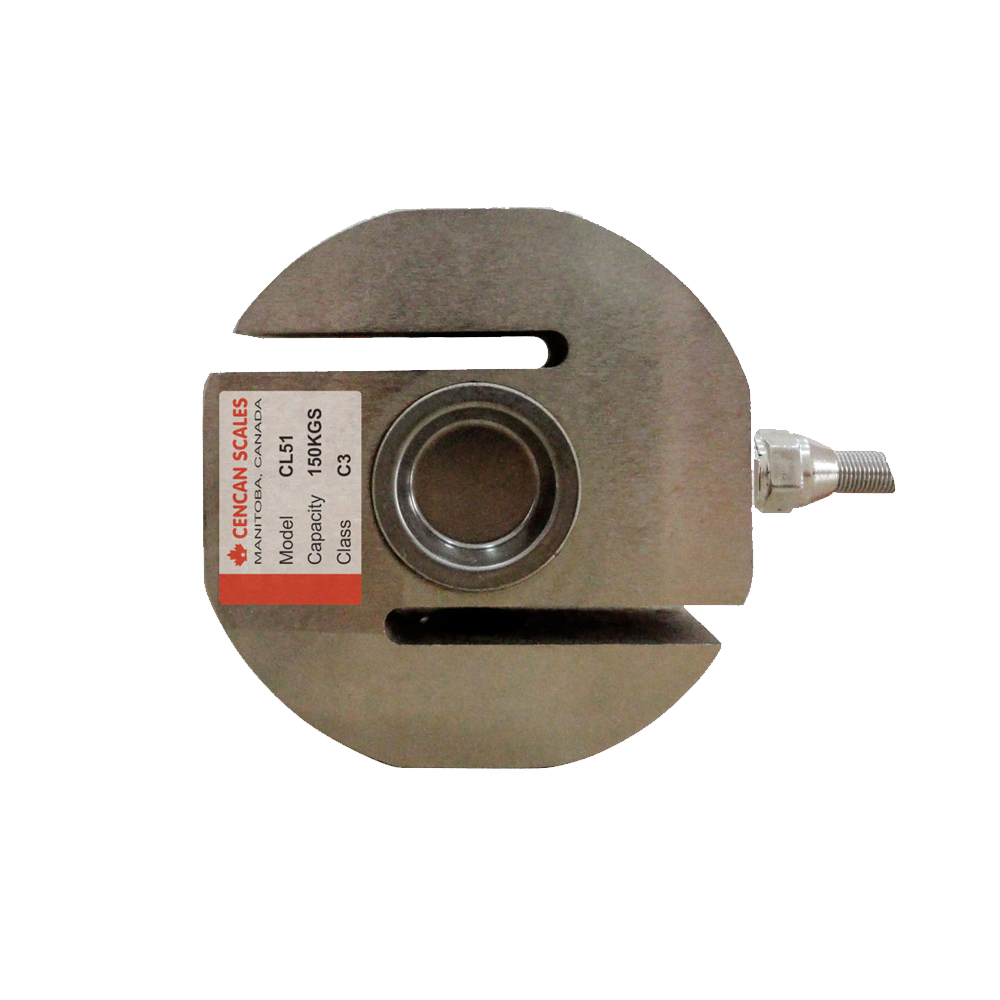

CL51 is stainless steel S-stype load cell, designed for wide applications in process weighing and force measuring industries.
Applications
- Bin / Hopper / Belt conveyer scales
- Tension / Compression measurements
Main specifications
| Rated capacities (Emax) | 20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 700, 1000kg | Temperature range, compensated | -10°C - +40°C |
| 1.2, 1.5, 2, 2.5, 3,5, 7.5, 10t | Temperature range, operating | -30°C - +70°C | |
| Sensitivity | 2.0±0.003mV/V (20kg-7.5t) : 1.8 ± 0.002mV/V (10t) | Maximum safe overload | 150% F.S |
| Accuracy cless | C2-C3 | Ultimate overload | 200% F.S |
| Zero balance | ± 1%F.S | Excitation, recommended | 10-12V DC |
| TCO | ± 0.02%F.S/10°C | Excitation, maximum | 15V DC |
| TC SPAN | ± 0.02%F.S/10°C | Protection class | IP65 (20-1000kg), IP68 (1..2-10t) |
| Input impedance | 400±20Ω (200-300kg, 1.2-10t) | Construction | Alloy Steel, Stainless Steel |
| Output impedance | 352±3Ω | Cable | Length: 2.6m (10-1000kg), 3m (1.2-10t) |
| Insulation impedance | ≥ 5000MΩ | Diameter: Φ 5mm (20-1000kg, 10t), Φ 6mm (1.2-7.5t) |
